The following are examples of graphs obtained from the Circuit Simulator.Details of these circuits will be found in the downloaded documentation.

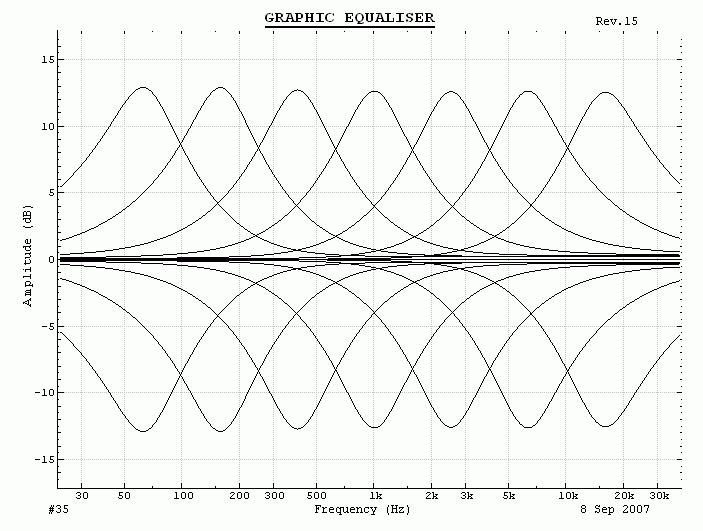

Response
of Seven Band Graphic Equaliser

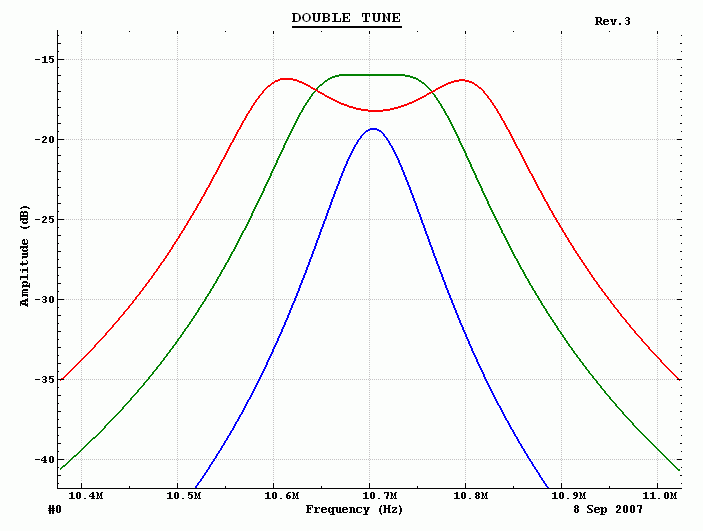

Response
of Mutually Coupled Tuned Circuits with different Coupling
Factors
Under Coupled - Critical Coupling - Over Coupled

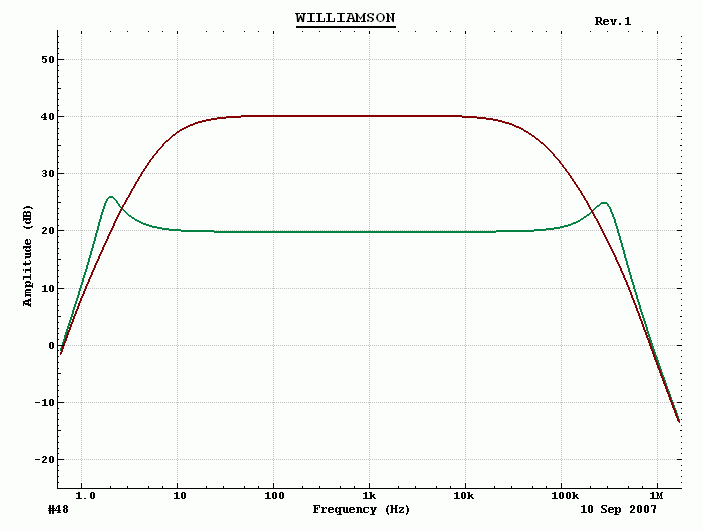

Response
of WILLIAMSON Audio Valve Amplifier
Response with — and without — negative feedback applied

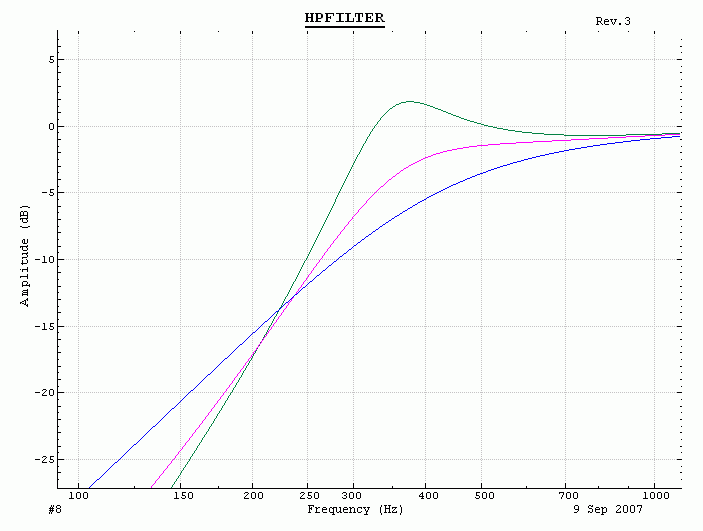

Response
of High Pass Filter with differing levels of damping

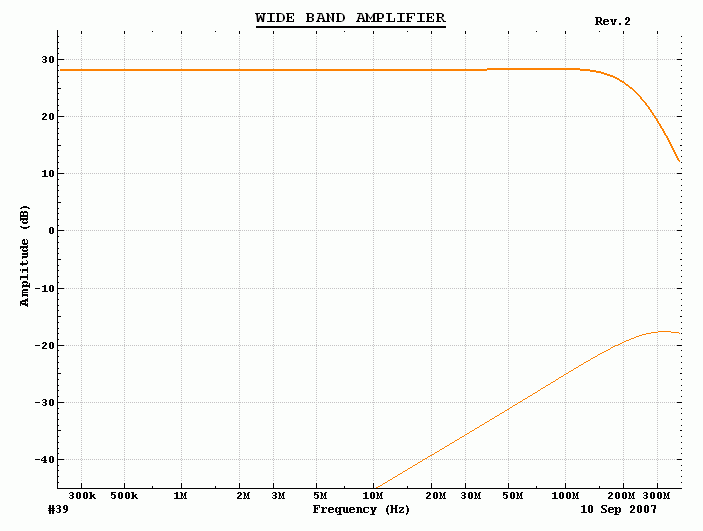

Frequency
Response of Wideband Transistor Amplifier
Lower trace shows common mode rejection

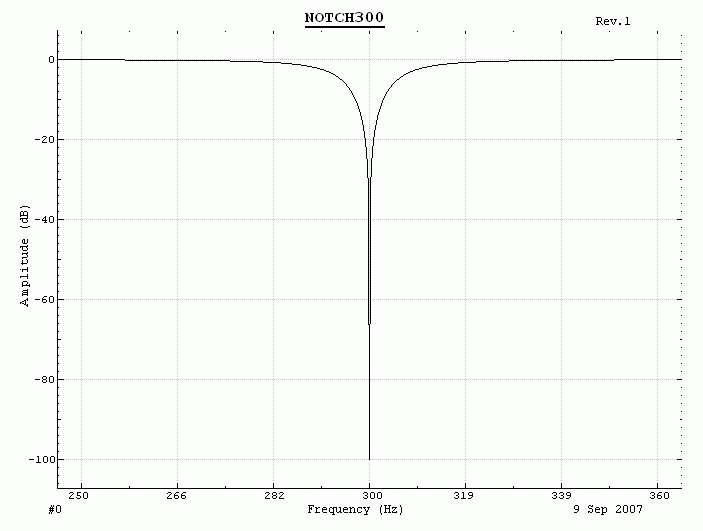

Response
of 300Hz Notch Filter
